10-15-19 Inch Industrial Computer Touch Screen All In One Machine
Resistor Capacitor Wall Mounted Embedded
Industrial industrial control all-in-one machine supports
personalized and reasonable configuration to create industrial
control all-in-one machine suitable for different needs of all
walks of life
1. A variety of touch modes, suitable for personalized needs:
1) Non touch display screen, only for real use, no touch function,
operation requires keyboard and mouse
2) Resistance touch display screen, single touch, by pressing on
the screen to apply 50-70g pressure to achieve touch, advantages:
cost saving, high cost performance, can be touched with gloves,
water / oil on the screen does not affect the accuracy, weakness:
poor scratch resistance.
3) Capacitive touch screen, multi touch, far away from touch screen
mobile phone, through human body static electricity to achieve
touch, advantages; touch convenient and fast, price slightly higher
than resistance touch, screen surface scratch resistance, strong
explosion-proof characteristics.
4) Infrared touch screen, two-point touch, by blocking the screen
up and down and left and right direction of infrared connection to
achieve touch, advantages: can block light through any object to
touch, disadvantages: easily affected by remote control, high
temperature objects, sunlight or incandescent lamps and other
infrared sources.
2. Multiple operating systems: windows7, windows8, windows10, XP,
Android.
3. Using Intel CPU, industrial control LCD, demo app application
development, strong core 24h operation without worry.

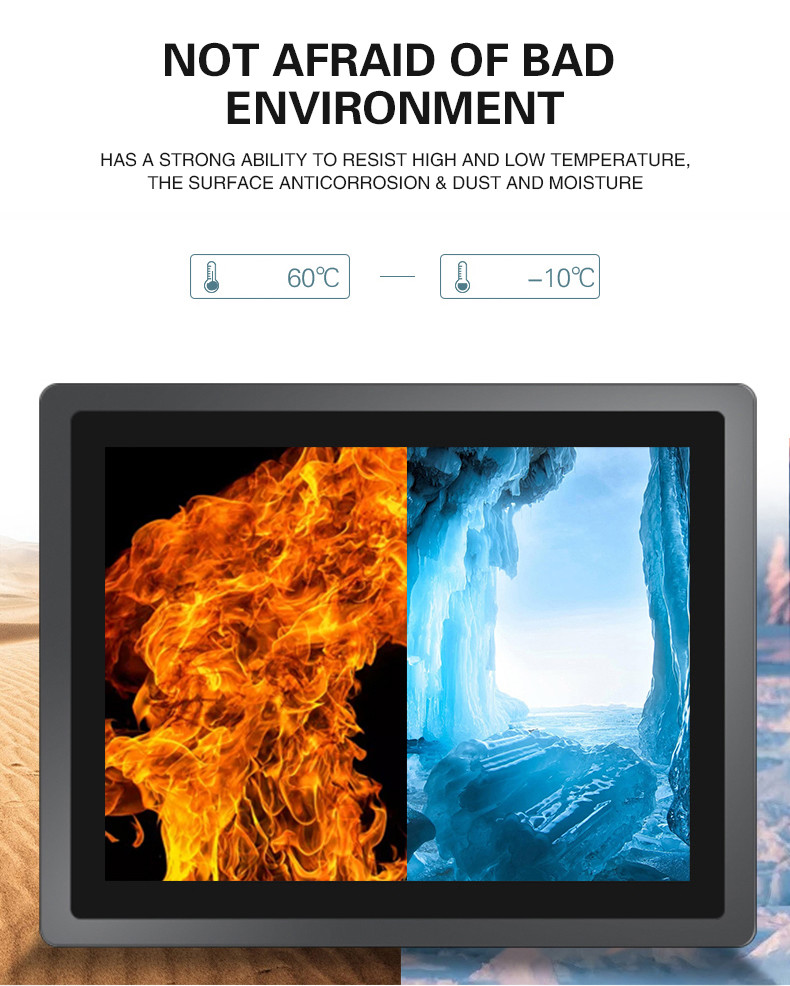

4. It is resistant to high and low temperature, suitable for wide
temperature operation from - 10 ° C to 60 ° C, and can operate
stably in harsh environment with large temperature difference.
5. Embedded capacitance resistance integrated machine, front panel
3mm design, thin as one, waterproof and dustproof.
6. Efficient and scientific design of heat dissipation system, fan
heat plate and cooling hole, help the machine quickly dissipate
accumulated heat, effectively prolong the life of the machine.
7. Rich external interfaces, support customization, to meet the
needs of different industries.
Brand:LIQUISE Screen specifications: 15 inches Screen ratio: 4:3 Resolution: 1024x 768 Backlight type: LED Motherboard: J1800/J1900 industrial control motherboard | Memory: 2G/4G/8G (upgradeable) Interface: VGA x 1HDMIx 1USBx4L AN
x 1COM x 2 audio input/output x 1DC Power connector x 1 Network card: Built-in Gigabit network card Graphics: Integrated HD
|
Common system: win7/win10/Android Normal power: ≤40W Working temperature: -10C~+60C Environmental humidity: 20%~70% Product certification: CE, FCC, CCC Applicable industries: Industry, Commerce
| Touch screen: Resistive/Capacitive Response time: 5ms Display brightness: 350cd/m2 Contrast ratio: 1000:1 Color depth: 16.7M CPU: Celeron dual-core 2.41GHz/quad-core 1.99GHz
|
Power supply: External power supply 12V Special structure: Fanless dustproof structure Aluminum alloy cooling back cover Can be installed and built-in: Wireless wifi, 4G,
Bluetooth(optional) Viewable size: 304mm x 228mm Shell size: 378mm x 297mm
| Bracket hole: 75mm x 75mm Appearance material: Metal cold rolled sheet Bracket: Wall Hanger / Die-casting desktop bracket (optional) |
Capacitor size Shell width(mm)
Shell heigh(mm)
Thickness(mm)
Screen width(mm)
Screen heigh(mm)
Screen Resolution (mm) Wall hole position (mm) Screen width:height
| 8.4inches 236
190
51.5
170.4
127.8
800*600
100*100
4:3
| 10.4 inches 283
225.2
56.2
213.1
160.3
1024*768
100*100
4:3
| 12.1 inches 317
258
56.2
246
184.5
1024*768
100*100
4:3
| 15 inches 378
297
56.2
304
228
1024*768
100*100
4:3
| 17 inches 413
342
56.2
338.92
271.34
1280*1024
100*100
4:3
| 19 inches 454
375.5
62.7
377.3
302.1
1280*1024
100*100
4:3
| 22 inches 559
349.3
65.5
477.6
261.1
1920*1080
100*100
16:9
|
