    CE FCC CCC 15inch Industrial Touch Screen PC Panel Computers

    Ask Lasest Price
    Brand Name : LIQUISE
    Model Number : XHT101
    Certification : CCC,FCC,CE,ISO9001
    Price : $244-$317
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 Piece/Pieces per Week
    Delivery Time : 5-7 days
    • Product Details
    • Company Profile

    CE FCC CCC 15inch Industrial Touch Screen PC Panel Computers

    15inch Industrial Touch Screen PC Panel Computers

    Industrial control production needs closer operation integration and more frequent human-computer interaction, so almost all industrial single touch screen modes can replace mouse and keyboard (reserve some emergency buttons in case of emergency). The operating system has XP, Windows 7, Linux based on X86 (a CPU architecture similar to ordinary PC, now has 64 bit x64 Architecture), The embedded wince, Linux and Android based on ARM architecture are not very high, but the real-time requirements are very high. The embedded wince, Linux and Android systems are used. There are few manufacturers of embedded wince, Linux and Android systems in China. The most representative is the design of micro embedded industrial touch multi-in-one machine,


    CE FCC CCC 15inch Industrial Touch Screen PC Panel Computers


    Brand:LIQUISE

    Screen specifications: 15 inches

    Screen ratio: 4:3

    Resolution: 1024x 768

    Backlight type: LED

    Motherboard: J1800/J1900 industrial control motherboard

    Memory: 2G/4G/8G (upgradeable)

    Interface: VGA x 1HDMIx 1USBx4L AN
    x 1COM x 2 audio input/output x 1DC

    Power connector x 1

    Network card: Built-in Gigabit network card

    Graphics: Integrated HD


    Common system: win7/win10/Android

    Normal power: ≤40W

    Working temperature: -10C~+60C

    Environmental humidity: 20%~70%

    Product certification: CE, FCC, CCC

    Applicable industries: Industry, Commerce

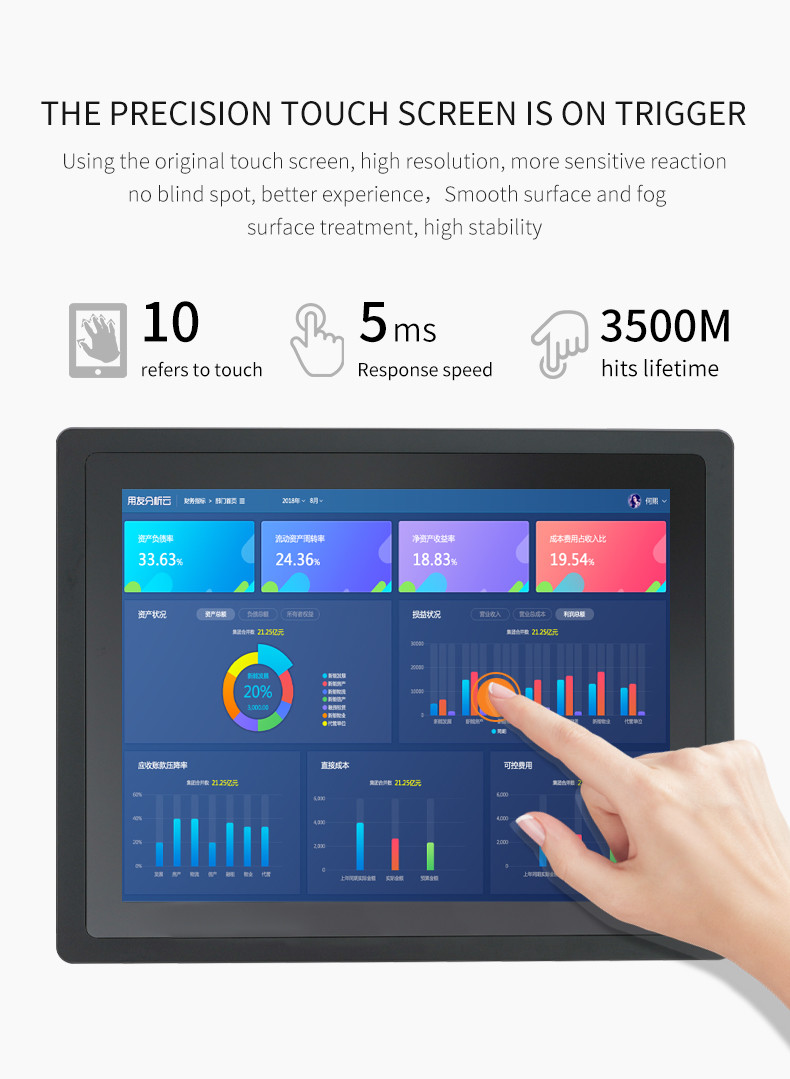

    Touch screen: Resistive/Capacitive

    Response time: 5ms

    Display brightness: 350cd/m2

    Contrast ratio: 1000:1

    Color depth: 16.7M

    CPU: Celeron dual-core 2.41GHz/quad-core 1.99GHz


    Power supply: External power supply 12V

    Special structure: Fanless dustproof structure

    Aluminum alloy cooling back cover

    Can be installed and built-in: Wireless wifi, 4G, Bluetooth(optional)

    Viewable size: 304mm x 228mm

    Shell size: 378mm x 297mm


    Bracket hole: 75mm x 75mm

    Appearance material: Metal cold rolled sheet

    Bracket: Wall Hanger / Die-casting desktop bracket (optional)

    Capacitor size

    Shell width(mm)


    Shell heigh(mm)


    Thickness(mm)


    Screen width(mm)


    Screen heigh(mm)


    Screen Resolution

    (mm)

    Wall hole position

    (mm)

    Screen width:height


    8.4inches

    236


    190


    51.5


    170.4


    127.8


    800*600


    100*100


    4:3


    10.4 inches

    283


    225.2


    56.2


    213.1


    160.3


    1024*768


    100*100


    4:3


    12.1 inches

    317


    258


    56.2


    246


    184.5


    1024*768


    100*100


    4:3


    15 inches

    378


    297


    56.2


    304


    228


    1024*768


    100*100


    4:3


    17 inches

    413


    342


    56.2


    338.92


    271.34


    1280*1024


    100*100


    4:3


    19 inches

    454


    375.5


    62.7


    377.3


    302.1


    1280*1024


    100*100


    4:3


    22 inches

    559


    349.3


    65.5


    477.6


    261.1


    1920*1080


    100*100


    16:9



    CE FCC CCC 15inch Industrial Touch Screen PC Panel ComputersCE FCC CCC 15inch Industrial Touch Screen PC Panel Computers
