Brand Name : | LIQUISE |
Model Number : | XHT800 |
Certification : | CE/CCC/FCC/ISO9001 |
Price : | Face to face |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 1000 Piece/Pieces per Week |
Delivery Time : | 5-7 days |

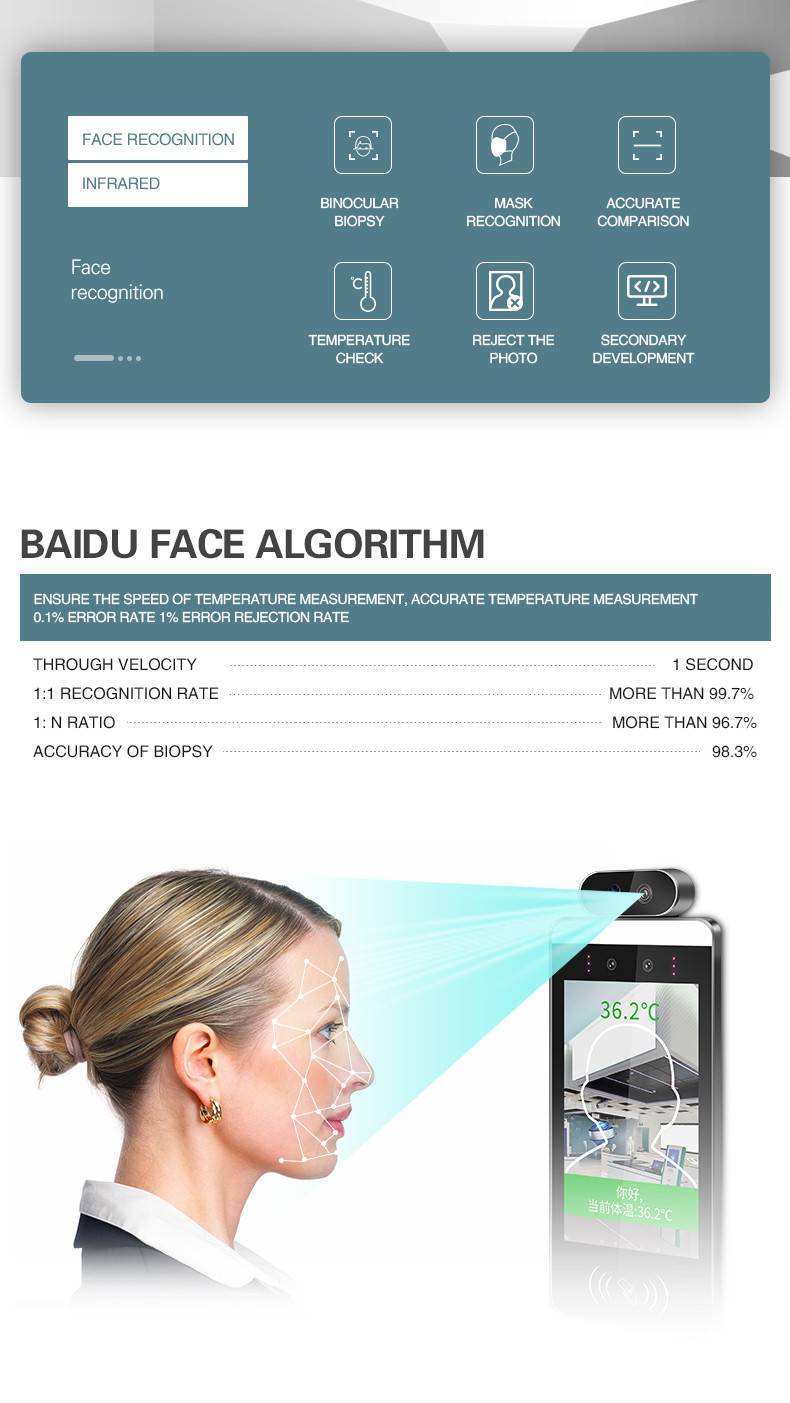

Automatic Temperature Detector For Face Recognition And Temperature
Measuring Machine
Product Features
1. Product parameters: attendance machine type: voice,
multi-functional integration; Attendance authentication method:
face recognition; Face recognition, fast temperature measurement,
high temperature alarm. Factory direct sales, three-year warranty,
180 day replacement. Quality commitment and guarantee: the company
has been focusing on the business display field for 12 years. It is
a mature enterprise of business intelligent terminal equipment,
industrial touch all-in-one machine, R & D and production
machine sales.
2. Face recognition and temperature measuring machine: it supports
accurate face recognition and comparison, human body temperature
detection, temperature display function, and automatic alarm of
abnormal body temperature when wearing a mask. Binocular live
detection, accurate comparison, body temperature detection.
Information display, portrait storage, large capacity storage,
dynamic face recognition, multiple recognition functions, face or
swipe card, etc., open stranger visit records, whether there is
information collection or not, peer records will all be recorded.
3. Computer server, multi machine control: you can choose to use
the WAN computer server to control the temperature measurement
machine, quickly import employee information, configure ID card,
real-time clock, temperature measurement and other settings, you
can also operate multiple machines at the same time. 10 point
capacitive touch, flexible operation, IPS full view display,
resolution 1080 * 1920, backlight brightness 450cd / m2. It doesn't
need to play advertisement at any time, and supports split screen
setting.
Applicable to office areas, hotels, office buildings, schools,
shopping malls, shops, communities, public services and management
projects that need to use face access control places.
Technical parameter:
Screen | 8 inch |
Overall size | Long 284* width 140*high29mm |
processor | High performance 32 bit 4 core ARM chip |
Storage memory | 16GB |
Measurement mode | Infrared thermal imaging temperature measurement |
Measuring distance | 0.3m~1m(suggest 0.5m) |
communication method | TTL |
Temperature measurement accuracy | ±0.2℃~±0.4℃ |
Operating temperature | -20~65℃ for |
Storage temperature | -40~65℃ for |
Power supply | 3-5V |
Electric current | 2ma |
Baud rate | 9600/115200 |
Default automatic output frequency | 14Hz |
Wavelength range | 8~14µm |
Temperature output | parallel output at any time |
Temperature correction | Manual and automatic calibration |
Alarm threshold | Adjustable |
Wiegen interface | Support weigen 26 weigen34 |
Other interface | 232 TTL WIFI RJ45 |
Type | Can be wall-mounted, desktop, vertical, gate |
camera | 200w:USBConnector,Binocular wide dynamic,Glare |
Aperture 2.8,Focal length 1.6mm,Angle of view 130°,TV distortion<-5%,Photosensitive area size1/5-inch | |
Pixel:meet customer’s need,≥2 million pixels | |
Assembly angle: flat out | |
Image Sensor | 6mm Focal length,F2.4 Aperture |
Fill light | LED:white light,RGBCamera fill light,SDK with control interface |
NIR:850nm Infrared LED light,IR Camera fill light source,SDK with control interface | |
Operating system | Android 6.0.1 or above |
Input power | 12V2A |
Backlight identification illuminance | <6000Lux |
Effective identification distance | 0.5m-4m |
working environment | Indoor,outdoor(With rainproof frame),10~90%(Non-condensing) |
Operating temperature | -20℃~+55℃ |
Card reading speed | 0.2S |
Matching | |
ID card reader | Support second-generation ID card identification function, SDK contains control interface |
LTE Function | Support 4G full Netcom Internet access function |
![]() |
