Wall Mounted Touch Machine For Children'S Campus Education
Intelligent Digital Electronic Class Card Reader
Intelligent electronic class card, capacitive multi-point touch
system, convenient access to operation data, real-time interaction,
intelligent terminal connected with the rear cloud platform.
1. Display class name, class slogan, class teacher's name, class
teacher's message, class star in class (course status, course
content, classroom location), campus news, mobile red flag.
2. Display class information, school notice information, teachers,
multimedia pictures, video, voice, flash, etc.
3. Cloud background management, the platform manages the basic data
information of units, schools, teachers and students at all levels,
realizes the maintenance consistency of basic general data, and
provides interface services for the core system of education
management department.
4. LG HD capacitive touch screen, 1080p Full HD image quality,
clear image quality, intelligent noise removal.

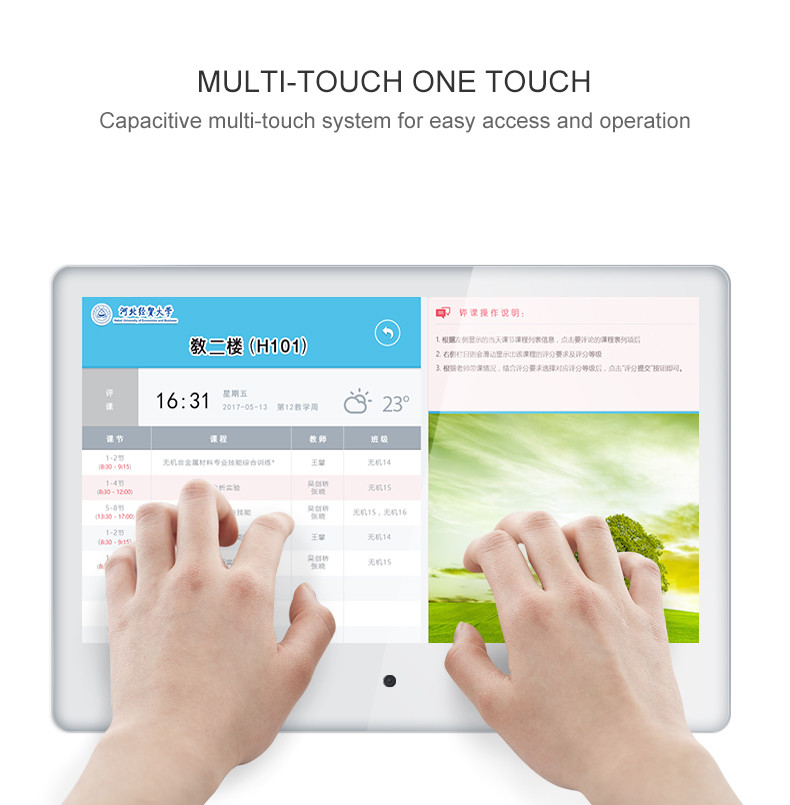

5. Capacitive multi-point touch system, precise touch, no broken
wire, drift, convenient access operation.
6. Built in toughened glass to protect students from collision and
damage.
7. Built in WiFi module and campus management software, supporting
the whole network management mode, convenient equipment, easy
installation and one-stop management of content.
8. Dual coaxial speakers restore every detail of the sound, making
human-computer communication more colorful.
9. Silent heat dissipation, support 24-hour uninterrupted
operation, effectively extend the life of the machine, avoid blue
screen crash caused by high temperature, which is more stable than
traditional machine.
10. Seiko material, imported baking paint, rich cooling holes to
drive away high temperature.
Product parameters:
| Model | LN-156B | LN-185B | LN-215B | LN-270B |
LCD screen | Size | 15.6inch | 18. .5inch | 21.5inch | 27inch |
| Display Size(mm) | 344x193 | 409x230 | 476x268 | 598x336 |
| Screen resolution | 1366x768 16:9 | 1920x1080 16:9 |
| Viewing angle | R/L 178°,U/D 176° |
| Brightness | 350cd/m2 |
| Touch screen | Touch screen type | Ten-point capacitive touch |
| Touch resolution | 4096x4096 |
| Touching medium | Conductor contact operations such as fingers and touch pens |
| Computer response | system automatic identification |
| Drift | No drift, no change with the environment |
| Appearance | Surface material | Front cover with tempered glass |
| Body technology | Aluminum alloy oxidized frame, hardware back cover, rounded corners |
|
Installation method | Wall hanging |
| Frame color | white/black/silver |
| Power supply | Built-in speakers | 2x10W stereo speakers |
|
Rated power | 30W | 40W | 55W | 70W |
| Size | Body size(mm) | 395x309x24 | 463x346x24 | 548x449x24 | 652x452x24 |
| Net weight(kg) | 14 | 18 | 23 | 35 |
| Packing size(mm) | 710x379x64 | 543x406x64 | 628x509x64 | 732x512x64 |
| Android version |
Operating system | Android 5.0/Android 6.0 |
| Configuration | Rockchip 3288+2G running memory + 16G saving memory |
| Machine interface | USBx2,TFx1 |
| Optional configuration | Standard | 3G/4G |
|
Android version | Eight-core, 4G running memory, 32G saving memory |
|
Computer version | 13/15/17. 4G/8G memory, 64G/128G/256G solid state drive |
