Product overview:

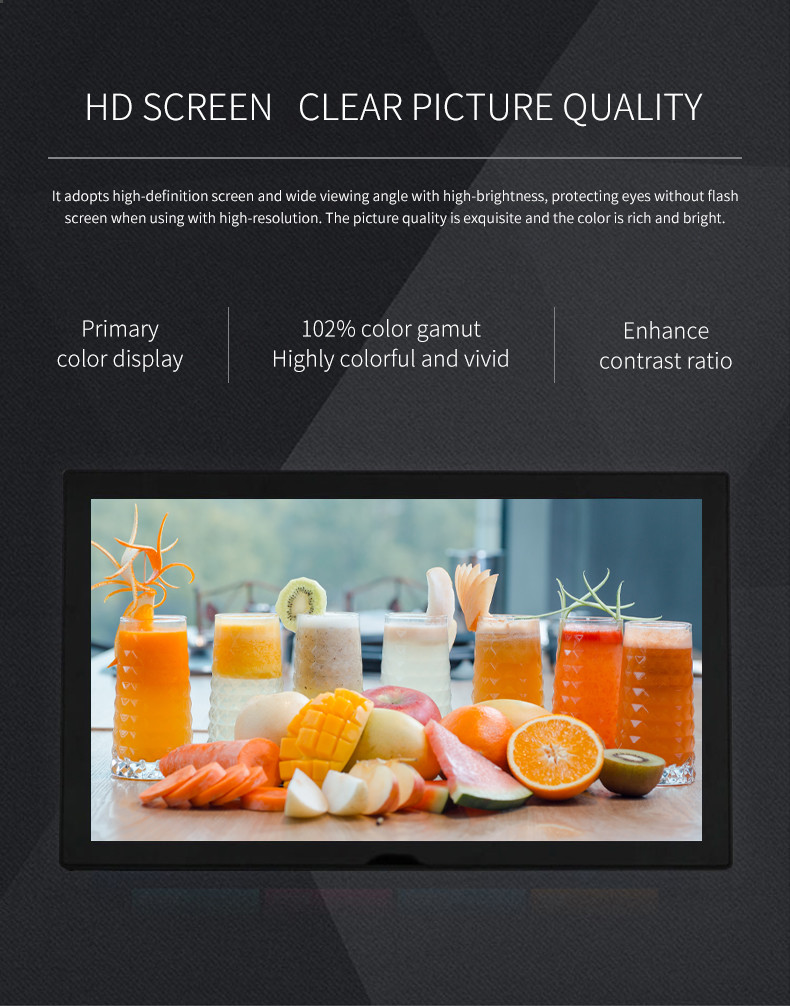

The 13.3-inch wall mounted high-definition capacitive touch inquiry
all-in-one machine is equipped with a high-performance capacitive
touch screen with a lifetime of more than one million clicks. It
does not need to use a mouse or keyboard. It can realize all
operations of the computer by gently clicking or crossing the
screen with a finger, making the computer more easy to use, and
completely changing the way people interact with the computer. Its
surface material is toughened glass, using CCFL backlight source
new imported LCD, quality safety and reliability. Built in
professional x86 industrial decoding board, through 80 ℃ continuous
72 hours working test, stable performance. It can be equipped with
built-in or external WiFi / 3G module, which is suitable for
various project application requirements.
The supporting server software is based on B / S architecture,
supporting layout management, program setting, terminal remote
management, etc.
Specification parameters:
Model vt130
LCD screen size: 13.3inch
Screen resolution: 1366 * 768 16:9
Display size: 292mm * 165mm
Visual angle: 85 ° / 85 ° / 85 ° (L / R / U / D)
Brightness: 350cd / m2 (customized highlight)
Contrast: 5000:1
Display color: 16.7M
The reaction time was 2ms
Touch screen type capacitive touch
Touch resolution: 4096 * 4096
Scanning rate: 100scans / S
Transmittance ≥ 95%
The minimum touch volume is 0.5mm
Response speed < 2ms
Touch media: opaque objects such as fingers and touch pens
Durability - withstand more than 60 million single touch
Automatic recognition of computer response system
Cursor speed ≥ 40 points / S
Drift - no drift, no change with environment
Appearance, surface material, front cover with toughened glass
Body technology: aluminum alloy oxidation frame, hardware back
cover, fillet
Installation mode: wall mounted / Embedded
Border color black
Power supply working power supply AC 100V ~ 240V 50 / 60Hz
Power supply voltage: 12V
Built in speaker 2 * 5W stereo speaker
Dimension: fuselage size: 336.5mm * 208.2mm * 35.1mm
Net weight: 2.5kg
Package size: 385mm * 285mm * 90mm
Available specifications:
Cdma2000-evdo module supported by telecom 3G
Mobile 3G supports TD-SCDMA module
China Unicom 3G supports WCDMA module
4G three network universal module supporting LTE network
CPU rk3288 coertex-a17 for Android: 1.8GHz
Operating system Android 6.0.1
Memory 2G
Support content format: Web page, video, picture, audio, text,
time, date, subtitle, weather information, RSS and other elements
Storage 16g
USB interface: 2 * USB2.0, 1 * HDMI, 1 * TF port, 1 * LAN, 1 *
power interface
Network card IEEE 802.3 Ethernet 100m
X86 chipset Intel & amp; 82nm70 chipset
Support content format: video, subtitle, flash, picture, word, PPT,
Excel, RSS, weather forecast, web page
CPU Celeron J1900 quad core, main frequency 2.42ghz
Memory DDR3 2G
Hard disk 32g solid state disk
Machine interface: 4 * USB, 1 * HDMI, 1 * VGA, 1 * LAN, 1 * Power
Interface
Network card IEEE 802.3 Ethernet 100m
X86 version optional CPU inter I3 / inter i5 / inter i7
Memory DDR3 2G / DDR3 4G / DDR3 8g
Hard disk: 32g SSD / 64g SSD / 128G SSD / 500g mechanical hard disk
