10 / 15 / 19 Inch Industrial Embedded All In One Machine Industrial
Touch Screen Capacitive Tablet PC XP Wall Hanging
1. It adopts Intel CPU to run stably, efficiently dissipates heat,
removes heat from the machine, supports customization and meets the
needs of personalized customization.
2. Intelligent display touch device, professional industrial point
to, new aluminum panel material
3. Six customized content, choose to buy with confidence:
1) Personalized Customization: installation method, color, size,
material, appearance design, power switch position and other
requirements, overall dust prevention.
2) Screen Customization: screen brightness, size and resolution can
be set for high-definition LCD screen
3) Interface customization: the interface can be customized to meet
the work needs of various industries
4) Configuration Customization: Cup customization, storage memory
customization and running memory customization.
5) OEM / ODM Customization: support OEM product customization, OEM
label, instruction manual, packaging materials, and neutral
materials can be provided
6) Other Customization: high and low temperature resistance - 10 °
C ~ 60 ° C, integrated function module design, Android motherboard
secondary development kit, fingerprint collector, built-in
microphone, RFID card reader, NFC card reader, autofocus camera,
infrared sensor, windows: Bluetooth, Android:l Bluetooth / WiFi.
4. Compatible with multiple systems: Win XP, win 7, win 8, win 10,
Android
5. Slim corner design. Frosted metal texture, imported military
grade material, sharp edges and corners, arc-shaped corner design.
6. High definition touch capacitive screen, 10 touch sensitive
operation, military grade material is not easy to scratch, surface
waterproof, antifouling, anti electromagnetic interference
7. Powerful chip, dual core CPU, supporting 24-hour continuous
operation, strong endurance, energy saving and low consumption. The
power on function can be set through Blos.

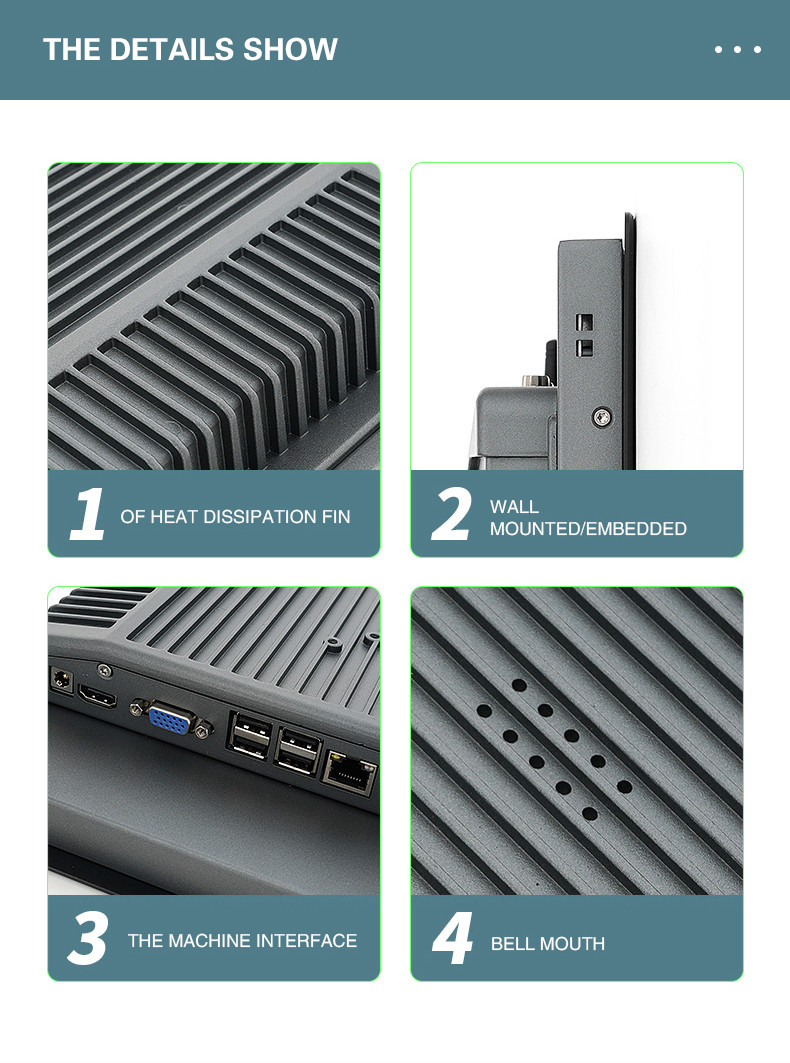

8. Cold rolled steel back cover and exhaust hole, rapid heat
dissipation, quiet and dust-proof, effectively prolong the life of
the machine.
9. Factory direct sales, support interface customization,
diversified fuselage interface.

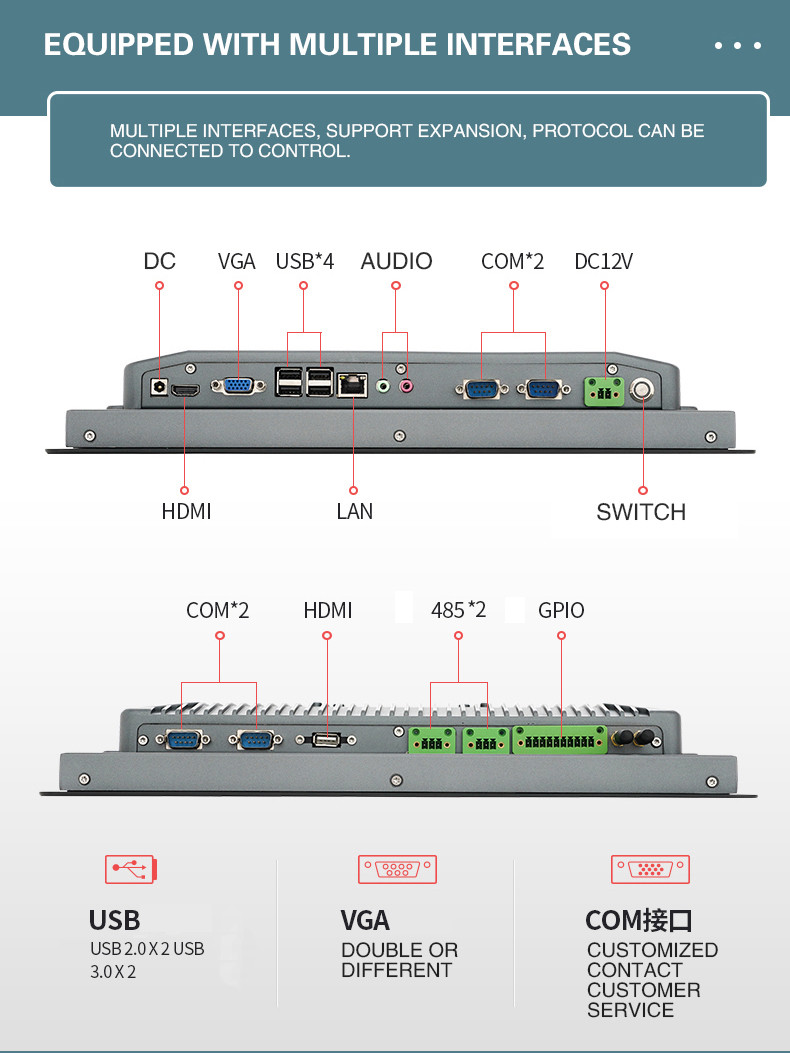

Brand:LIQUISE Screen specifications: 15 inches Screen ratio: 4:3 Resolution: 1024x 768 Backlight type: LED Motherboard: J1800/J1900 industrial control motherboard | Memory: 2G/4G/8G (upgradeable) Interface: VGA x 1HDMIx 1USBx4L AN
x 1COM x 2 audio input/output x 1DC Power connector x 1 Network card: Built-in Gigabit network card Graphics: Integrated HD
|
Common system: win7/win10/Android Normal power: ≤40W Working temperature: -10C~+60C Environmental humidity: 20%~70% Product certification: CE, FCC, CCC Applicable industries: Industry, Commerce
| Touch screen: Resistive/Capacitive Response time: 5ms Display brightness: 350cd/m2 Contrast ratio: 1000:1 Color depth: 16.7M CPU: Celeron dual-core 2.41GHz/quad-core 1.99GHz
|
Power supply: External power supply 12V Special structure: Fanless dustproof structure Aluminum alloy cooling back cover Can be installed and built-in: Wireless wifi, 4G,

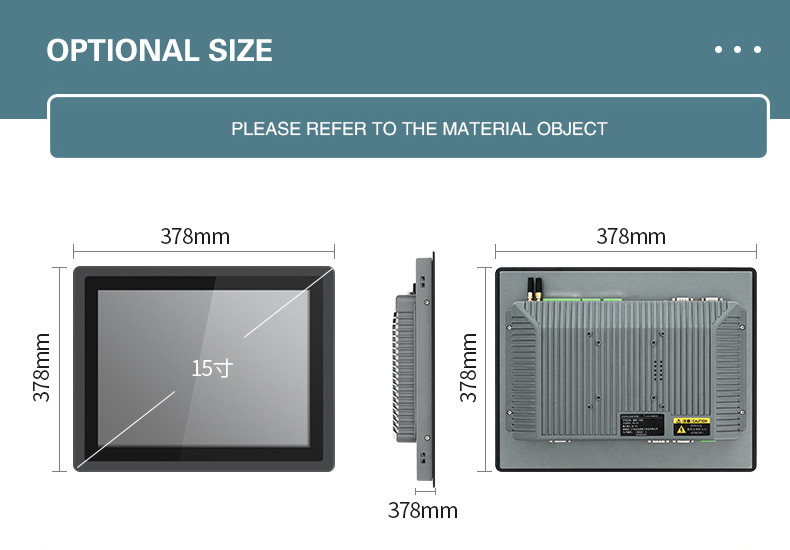

Bluetooth(optional) Viewable size: 304mm x 228mm Shell size: 378mm x 297mm
| Bracket hole: 75mm x 75mm Appearance material: Metal cold rolled sheet Bracket: Wall Hanger / Die-casting desktop bracket (optional) |
Capacitor size Shell width(mm)
Shell heigh(mm)
Thickness(mm)
Screen width(mm)
Screen heigh(mm)
Screen Resolution (mm) Wall hole position (mm) Screen width:height
| 8.4inches 236
190
51.5
170.4
127.8
800*600
100*100
4:3
| 10.4 inches 283
225.2
56.2
213.1
160.3
1024*768
100*100
4:3
| 12.1 inches 317
258
56.2
246
184.5
1024*768
100*100
4:3
| 15 inches 378
297
56.2
304
228
1024*768
100*100
4:3
| 17 inches 413
342
56.2
338.92
271.34
1280*1024
100*100
4:3
| 19 inches 454
375.5
62.7
377.3
302.1
1280*1024
100*100
4:3
| 22 inches 559
349.3
65.5
477.6
261.1
1920*1080
100*100
16:9
|
