Industrial Micro Mini Industrial Control Host Embedded Small Dual
Network J1900 Commercial Fanless Computer Portable
Adapt to the harsh industrial site environment, with strong
environmental adaptability, such as high requirements for stable
humidity range, dust-proof, anti-corrosion, anti-shock ability.
Suitable for a variety of equipment, dedicated to create a full
range of applicable computers, office, education, business,
industry or home entertainment.
1. The host has multiple COM ports, which can be used for various
communication devices.
2. Multi task display, high definition display, HDMI + VGA are used
together to realize multi task display platform.
3. High and low temperature resistant design, fully meet the
changing working environment and working requirements in use,
stable operation under high temperature difference environment from
- 15 ℃ to + 60 ℃.
4. All aluminum alloy shell, high-density heat dissipation tooth
design, strong heat dissipation, fully enclosed dust-proof,
shockproof and anti-electromagnetic interference ability, all kinds
of harsh environment can operate normally.
5. Energy saving and low power consumption technology, supporting
24-hour long-time stable operation, and setting power on and
network wake-up in BIOS.
6. Strictly copy the machine and conduct aging test. Before leaving
the factory, each host shall undergo 72 hours high temperature
aging and full load copying test to ensure the compatibility of
software and hardware and system stability.
7. Stable performance, low power consumption, rejection of blue
screen, black screen, crash.
8. The whole machine is made of aluminum alloy, which is solid and
durable. The aluminum alloy body without fan can directly and
quickly dissipate heat, with strong compression resistance and dust
and corrosion protection.

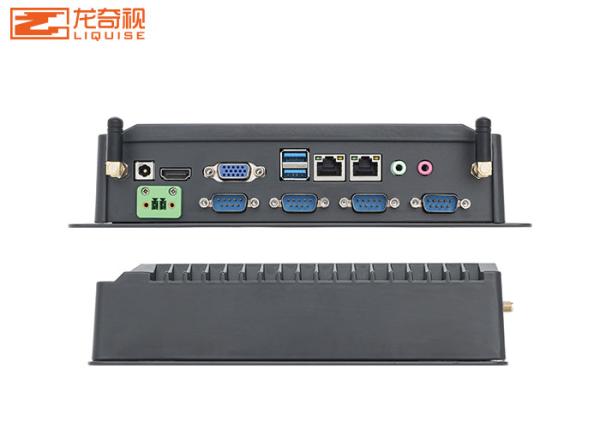

9. Rich I / O interface, stable performance, strong compatibility,
suitable for various industrial and commercial applications.
10. Metal power switch, stable and durable, one key switch, energy
saving and power saving.
Win7, compatible with multiple operating systems by default.
12. With its own mounting bracket, it supports wall mounted,
desktop, rack mounted, embedded and other installation methods, and
can be flexibly fixed in the desktop, wall and other spaces. Space
saving, easy and fast installation.
| Production specifications |
| Color | silver |
| SIZE | 21cmx 20cm x5 cm(Length, width, height) |
| Structure | all-aluminium Alloy fan-less enclosure for heat dissipation |
| Material Quality | Aluminium Alloy+Galvanized Steel |
| Memory | one DDR3L/1,.35 memory ,up to 8G( Optional) |
| 2.5Hard Disk | Capacity 500G(Optional) |
| CF | N/A |
| SSD | N/A |
| POWER | Standard 12V or 5V adapter(optional) |
| Installation mode | Desktop or wall mounted |
| Operating temperature | -10℃-60℃ |
| Storage temperature | -20℃-90℃ |
| Relative humidity | 5%-95% No condensation |
| Working Vibration | 0.5grms/5-500HZ/random/oper ating |
| Motherboard type | National Solid State Capacitor motherboard |
| Processor | Intel arena j1800/j1900 Core I3/I5/I7 |
| Graphics Cards | Collection inter HD key graphics cards |
| WEB | Collection 1x inter WG Gigabit network cards, Support Network
wake-up /PXE function |
| USB | 8*USB |
| Interface | 6*RS232 Serial port |
| Display | 1*VGA 1*HDMI |
| Audio | 1*MIC,1*Line-out |
| Expansion slot | 2*MINIPCIE(1*WIFI 1*MSATA) |
| Indicator Lights | Power indicator lights |
| System control | The power switch |
| wireless | 2*WIFI/3G SMA antenna (optional) |
