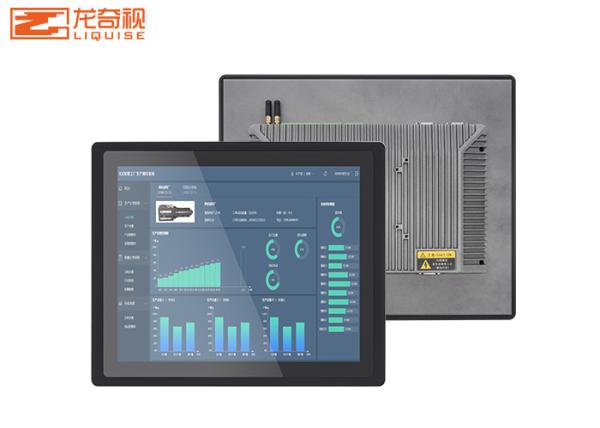

Industrial Touch Screen All In One Machine Embedded Industrial
Panel Wall Hanging Order And Cash Register Query
Industrial control all-in-one machine, including embedded
industrial touch all-in-one machine, wall mounted industrial touch
integrated machine and other styles. Independent research and
development of the whole machine, industrial Android tablet
computer, create a new interactive experience.
1. Thin and narrow frame design, IP65 dustproof and waterproof, fan
free silent design, independent research and development of
industrial motherboard, aluminum alloy heat dissipation material,
stable operation at high and low temperature, flame-proof,
explosion-proof and moisture-proof, EMC interference.
2. Low power consumption, high-performance industrial control
board, stable component performance, suitable for stable operation
in a variety of special harsh environment
3. It provides perfect SDK development kit, built-in professional
remote maintenance software, rich API interfaces, and supports the
expansion of functional modules such as face recognition, voice
interaction, RFID, infrared induction, etc.
4. Industrial grade protection grade, IP65 dust and water proof,
effectively prevent dust and water droplets from invading into the
machine interior.
5. Fan free silent cooling structure design, aluminum alloy body,
reasonable layout of heating components, to ensure that the
internal can effectively heat temperature.
6. Capacitive ten touch, through the human body's current
induction, fast response work
7. Stable anti-interference operation, in line with EMC anti
electromagnetic interference standards, suitable for use in various
industrial sites, outdoor signal interference and other
environments
8. It is widely used in smart city, smart education, smart
transportation, smart retail, smart healthcare, industry 4.0 and
other fields.
Brand:LIQUISE Screen specifications: 15 inches Screen ratio: 4:3 Resolution: 1024x 768 Backlight type: LED Motherboard: J1800/J1900 industrial control motherboard | Memory: 2G/4G/8G (upgradeable) Interface: VGA x 1HDMIx 1USBx4L AN
x 1COM x 2 audio input/output x 1DC Power connector x 1 Network card: Built-in Gigabit network card Graphics: Integrated HD
|
Common system: win7/win10/Android Normal power: ≤40W Working temperature: -10C~+60C Environmental humidity: 20%~70% Product certification: CE, FCC, CCC Applicable industries: Industry, Commerce
| Touch screen: Resistive/Capacitive Response time: 5ms Display brightness: 350cd/m2 Contrast ratio: 1000:1 Color depth: 16.7M CPU: Celeron dual-core 2.41GHz/quad-core 1.99GHz
|
Power supply: External power supply 12V Special structure: Fanless dustproof structure Aluminum alloy cooling back cover Can be installed and built-in: Wireless wifi, 4G,
Bluetooth(optional) Viewable size: 304mm x 228mm Shell size: 378mm x 297mm
| Bracket hole: 75mm x 75mm Appearance material: Metal cold rolled sheet Bracket: Wall Hanger / Die-casting desktop bracket (optional) |
Capacitor size Shell width(mm)
Shell heigh(mm)
Thickness(mm)
Screen width(mm)
Screen heigh(mm)
Screen Resolution (mm) Wall hole position (mm) Screen width:height
| 8.4inches 236
190
51.5
170.4
127.8
800*600
100*100
4:3
| 10.4 inches 283
225.2
56.2
213.1
160.3
1024*768
100*100
4:3
| 12.1 inches 317
258
56.2
246
184.5
1024*768
100*100
4:3
| 15 inches 378
297
56.2
304
228
1024*768
100*100
4:3
| 17 inches 413
342
56.2
338.92
271.34
1280*1024
100*100
4:3
| 19 inches 454
375.5
62.7
377.3
302.1
1280*1024
100*100
4:3
| 22 inches 559
349.3
65.5
477.6
261.1
1920*1080
100*100
16:9
|
