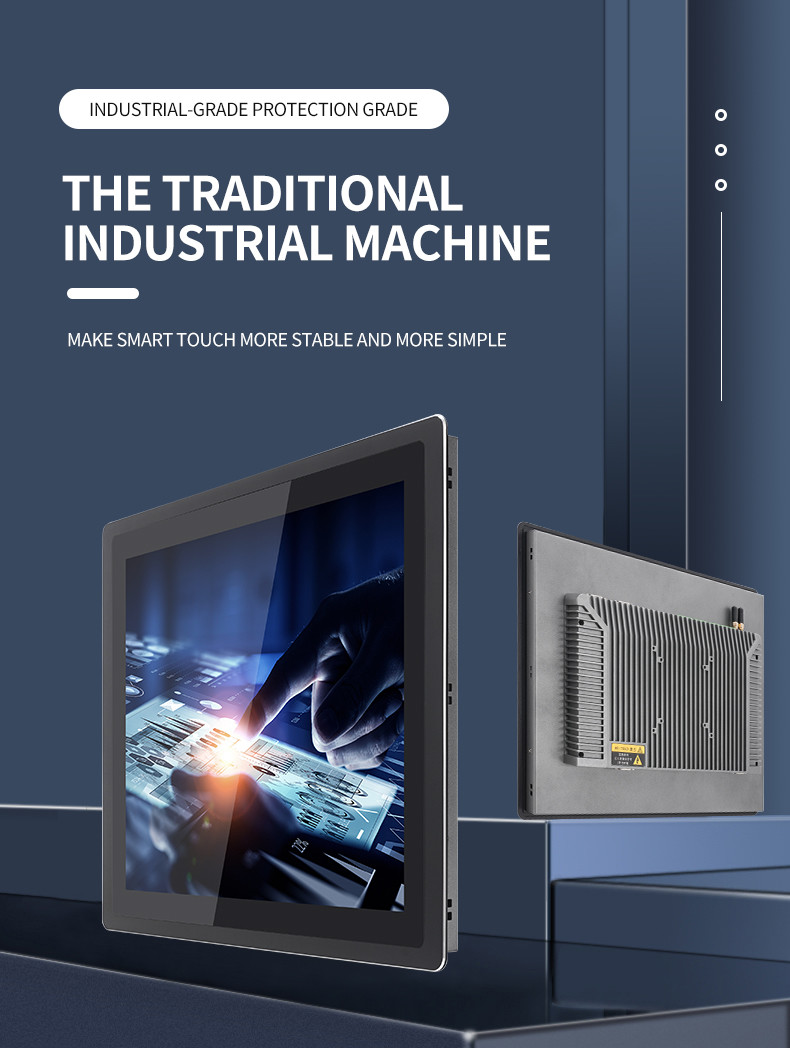

10 Inch, Fully Enclosed Industrial Control Integrated Machine
Embedded Touch Screen
Industrial control all-in-one machine, including embedded
industrial touch all-in-one machine, wall mounted industrial touch
integrated machine and other styles. Independent research and
development of the whole machine, industrial Android tablet
computer, create a new interactive experience.
1. Product application cases: factory automation, numerical control
equipment, intelligent terminal, queuing number machine, commercial
vending machine, medical detection.
2. Subvert the new pattern of the industry: exquisite technology,
stronger heat dissipation, upgrade all-in-one machine heavy hit.
3. Touch sensitive, high definition display, waterproof and
dustproof, alloy back cover, energy saving, support customization.
4. Aluminum alloy die casting private mold: private mold
processing, higher accuracy, selection of high-quality plate, good
quality, electromagnetic oxidation ability is better.
5. Compatible with man-machine interface and configuration
software: touch industrial all-in-one machine, mainly in industrial
field, easy to run industrial control configuration software and
industrial production control.
6. Precise touch is more sensitive: the original touch screen has
high resolution, more sensitive response, no blind spot, superior
experience, smooth surface and high processing stability.
7. High definition screen, clear picture quality: high definition
screen, high resolution picture quality, rich and bright colors,
superior quality, high definition backlight technology, high
contrast, let the color warm and full.
8. Strong pressure resistance: the screen surface is treated with
hardness, the screen is firm, suitable for harsh environment, cold
rolling process, aluminum alloy front frame, durable metal body.
9. All weather stable operation: the whole machine has the ability
of 24-hour continuous and stable operation, and is more than
welcome in the public space of various industry applications.
10. 3mm ultra thin panel: super thin, embedded seamless
installation.
11. Strong circulation, heat dissipation design: cold rolled steel
plate back cover porous back heat dissipation design: strong fan to
keep the working temperature stable.
Brand:LIQUISE Screen specifications: 15 inches Screen ratio: 4:3 Resolution: 1024x 768 Backlight type: LED Motherboard: J1800/J1900 industrial control motherboard | Memory: 2G/4G/8G (upgradeable) Interface: VGA x 1HDMIx 1USBx4L AN
x 1COM x 2 audio input/output x 1DC Power connector x 1 Network card: Built-in Gigabit network card Graphics: Integrated HD
|
Common system: win7/win10/Android Normal power: ≤40W Working temperature: -10C~+60C Environmental humidity: 20%~70% Product certification: CE, FCC, CCC Applicable industries: Industry, Commerce
| Touch screen: Resistive/Capacitive Response time: 5ms Display brightness: 350cd/m2 Contrast ratio: 1000:1 Color depth: 16.7M CPU: Celeron dual-core 2.41GHz/quad-core 1.99GHz
|
Power supply: External power supply 12V Special structure: Fanless dustproof structure Aluminum alloy cooling back cover Can be installed and built-in: Wireless wifi, 4G,
Bluetooth(optional) Viewable size: 304mm x 228mm Shell size: 378mm x 297mm
| Bracket hole: 75mm x 75mm Appearance material: Metal cold rolled sheet Bracket: Wall Hanger / Die-casting desktop bracket (optional) |
Capacitor size Shell width(mm)
Shell heigh(mm)
Thickness(mm)
Screen width(mm)
Screen heigh(mm)
Screen Resolution (mm) Wall hole position (mm) Screen width:height
| 8.4inches 236
190
51.5
170.4
127.8
800*600
100*100
4:3
| 10.4 inches 283
225.2
56.2
213.1
160.3
1024*768
100*100
4:3
| 12.1 inches 317
258
56.2
246
184.5
1024*768
100*100
4:3
| 15 inches 378
297
56.2
304
228
1024*768
100*100
4:3
| 17 inches 413
342
56.2
338.92
271.34
1280*1024
100*100
4:3
| 19 inches 454
375.5
62.7
377.3
302.1
1280*1024
100*100
4:3
| 22 inches 559
349.3
65.5
477.6
261.1
1920*1080
100*100
16:9
|
