8 / 12 / 15 / 17 Inch XP Embedded Touch Screen Android Industrial
Tablet
Industrial control all-in-one machine, including embedded
industrial touch all-in-one machine, wall mounted industrial touch
integrated machine and other styles. Independent research and
development of the whole machine, industrial Android tablet
computer, create a new interactive experience.
1. Industrial touch all-in-one machine, flat capacitor, industrial
motherboard, ten point touch, model color.
2. Electromagnetic interference, impossible to prevent? Rough
process, frequent failures? Our top priority is to solve your
troubles. We are a professional supplier in the field of industrial
control.
3. Embedded industrial control integrated machine: the front panel
IP65 is dustproof and waterproof, anti-corrosion and fast heat
dissipation. Industrial motherboard.

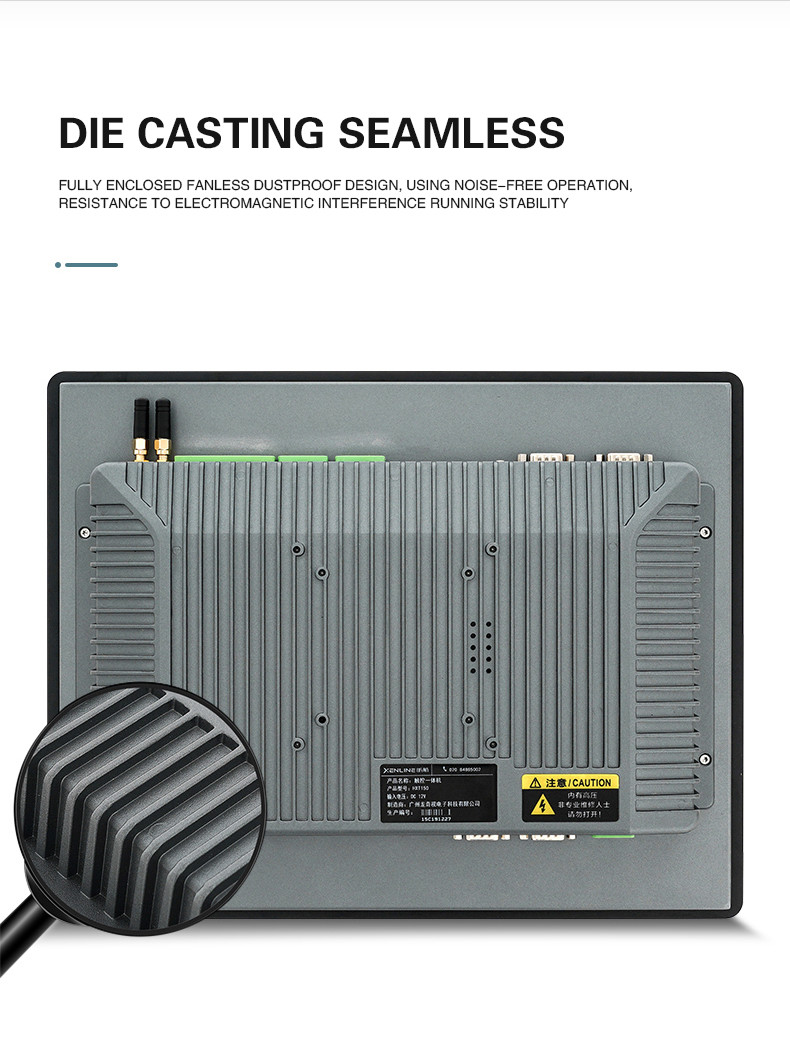

4. Appearance features: the frame is made of high-quality aluminum
alloy, seamless design, and the back panel is painted with sheet
metal. The body is delicate and elegant, and the product is
durable.
5. Stable performance, high efficiency: industrial motherboard,
stronger stability, faster running speed.
6. Celeron dual core, strong performance: fast response, strong
performance, low power consumption, strong environmental
resistance, high stability.
7. Sensitive response, precise touch: original touch screen, high
resolution, no blind spot, superior touch, smooth surface and fog
surface treatment.
8. No fear of wind and rain, anti electric and anti magnetic.
Resistant to high and low temperature, not afraid of severe cold
and heat.
9. Visual feast, HD presentation: high resolution, soft and
delicate image quality, high contrast and excellent color ratio
with HD backlight technology.
10. All day standby, stable endurance: it has the platform
capability of 7 * 24 hours long-term continuous operation, provides
a stable working environment, and can set the power on function
through BIOS, so it can still operate stably in an unstable
environment.
Brand:LIQUISE Screen specifications: 15 inches Screen ratio: 4:3 Resolution: 1024x 768 Backlight type: LED Motherboard: J1800/J1900 industrial control motherboard | Memory: 2G/4G/8G (upgradeable) Interface: VGA x 1HDMIx 1USBx4L AN
x 1COM x 2 audio input/output x 1DC Power connector x 1 Network card: Built-in Gigabit network card Graphics: Integrated HD
|
Common system: win7/win10/Android Normal power: ≤40W Working temperature: -10C~+60C Environmental humidity: 20%~70% Product certification: CE, FCC, CCC Applicable industries: Industry, Commerce
| Touch screen: Resistive/Capacitive Response time: 5ms Display brightness: 350cd/m2 Contrast ratio: 1000:1 Color depth: 16.7M CPU: Celeron dual-core 2.41GHz/quad-core 1.99GHz
|
Power supply: External power supply 12V Special structure: Fanless dustproof structure Aluminum alloy cooling back cover Can be installed and built-in: Wireless wifi, 4G,
Bluetooth(optional) Viewable size: 304mm x 228mm Shell size: 378mm x 297mm
| Bracket hole: 75mm x 75mm Appearance material: Metal cold rolled sheet Bracket: Wall Hanger / Die-casting desktop bracket (optional) |
Capacitor size Shell width(mm)
Shell heigh(mm)
Thickness(mm)
Screen width(mm)
Screen heigh(mm)
Screen Resolution (mm) Wall hole position (mm) Screen width:height
| 8.4inches 236
190
51.5
170.4
127.8
800*600
100*100
4:3
| 10.4 inches 283
225.2
56.2
213.1
160.3
1024*768
100*100
4:3
| 12.1 inches 317
258
56.2
246
184.5
1024*768
100*100
4:3
| 15 inches 378
297
56.2
304
228
1024*768
100*100
4:3
| 17 inches 413
342
56.2
338.92
271.34
1280*1024
100*100
4:3
| 19 inches 454
375.5
62.7
377.3
302.1
1280*1024
100*100
4:3
| 22 inches 559
349.3
65.5
477.6
261.1
1920*1080
100*100
16:9
|
